Description

This is an electrical part such as a motor, light, LED or switch.

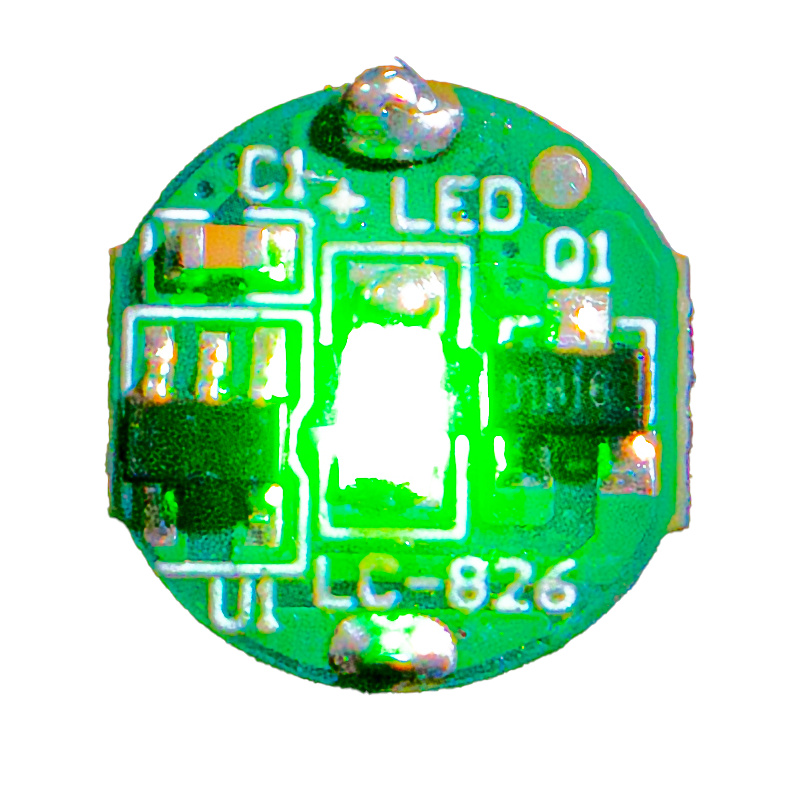

The LED Micro Module with a magnetic switch is a super compact LED module designed for easy integration into model works.

With a diameter of approximately 11mm and a height of approximately 5mm, this module combines an LED, switch, and battery case into a user-friendly unit.

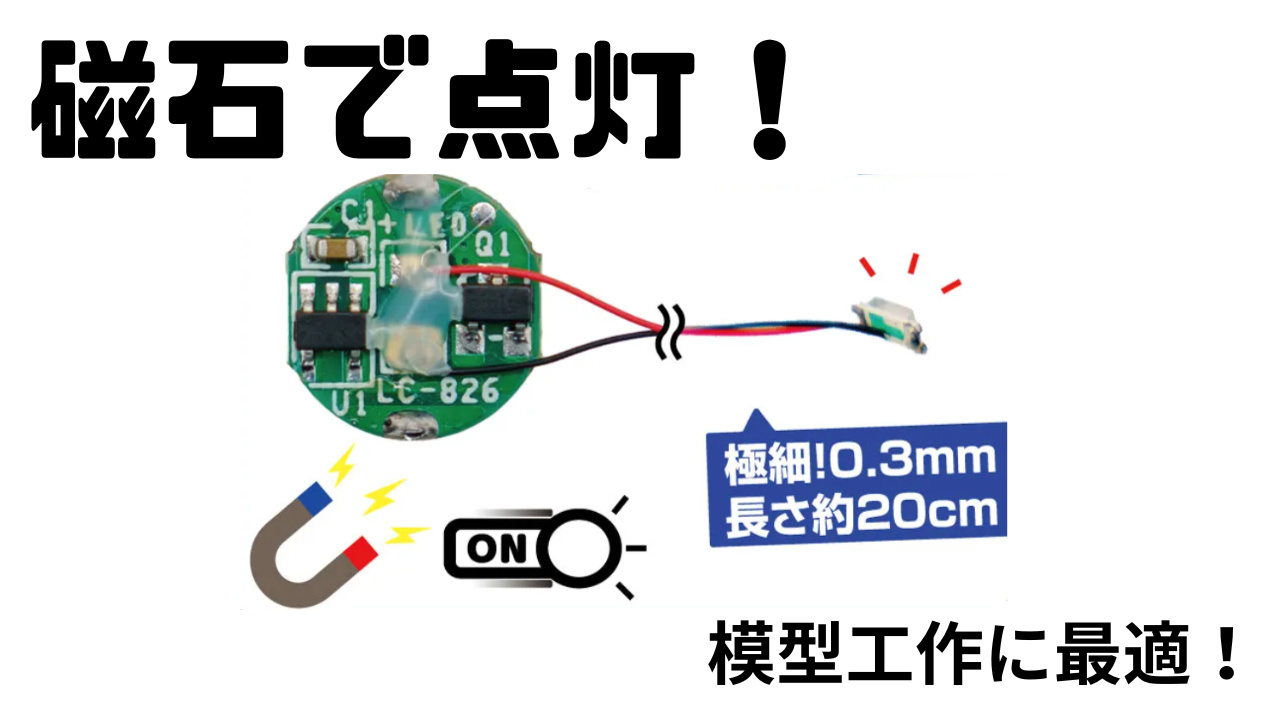

Equipped with a magnetic switch, you can toggle the LED on and off by bringing a magnet close to it. This allows for illumination of the LED module installed inside cases, housings, or models from the outside without direct contact.

The standard version allows for easy installation wherever illumination is desired, while the lead wire version offers advanced customization possibilities, such as embedding the module in tight spaces or attaching LEDs to narrow areas or protrusions.

Available in a range of nine colors to suit various models, both individually and in sets of three. (*Lead wire version available in six colors)

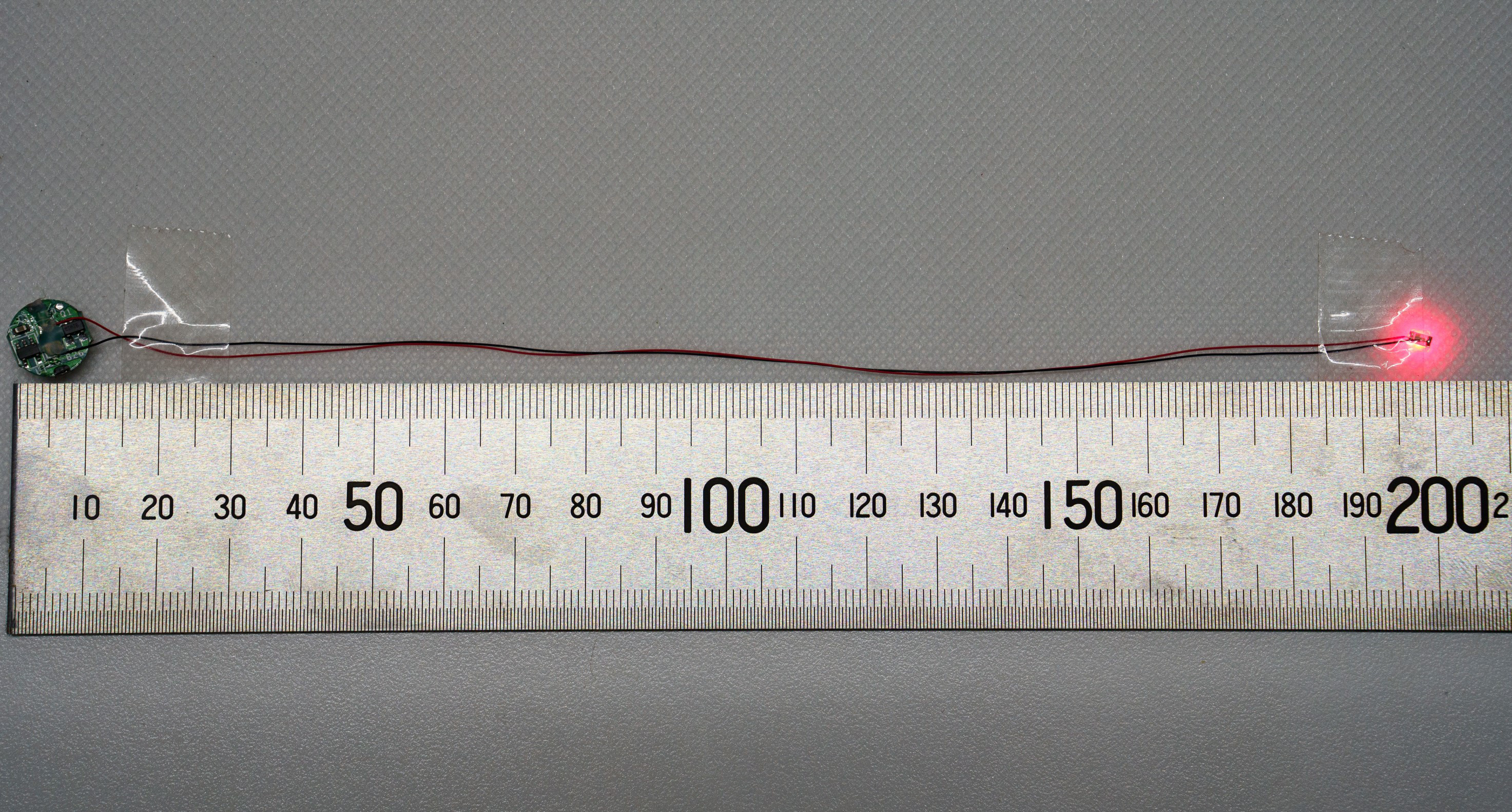

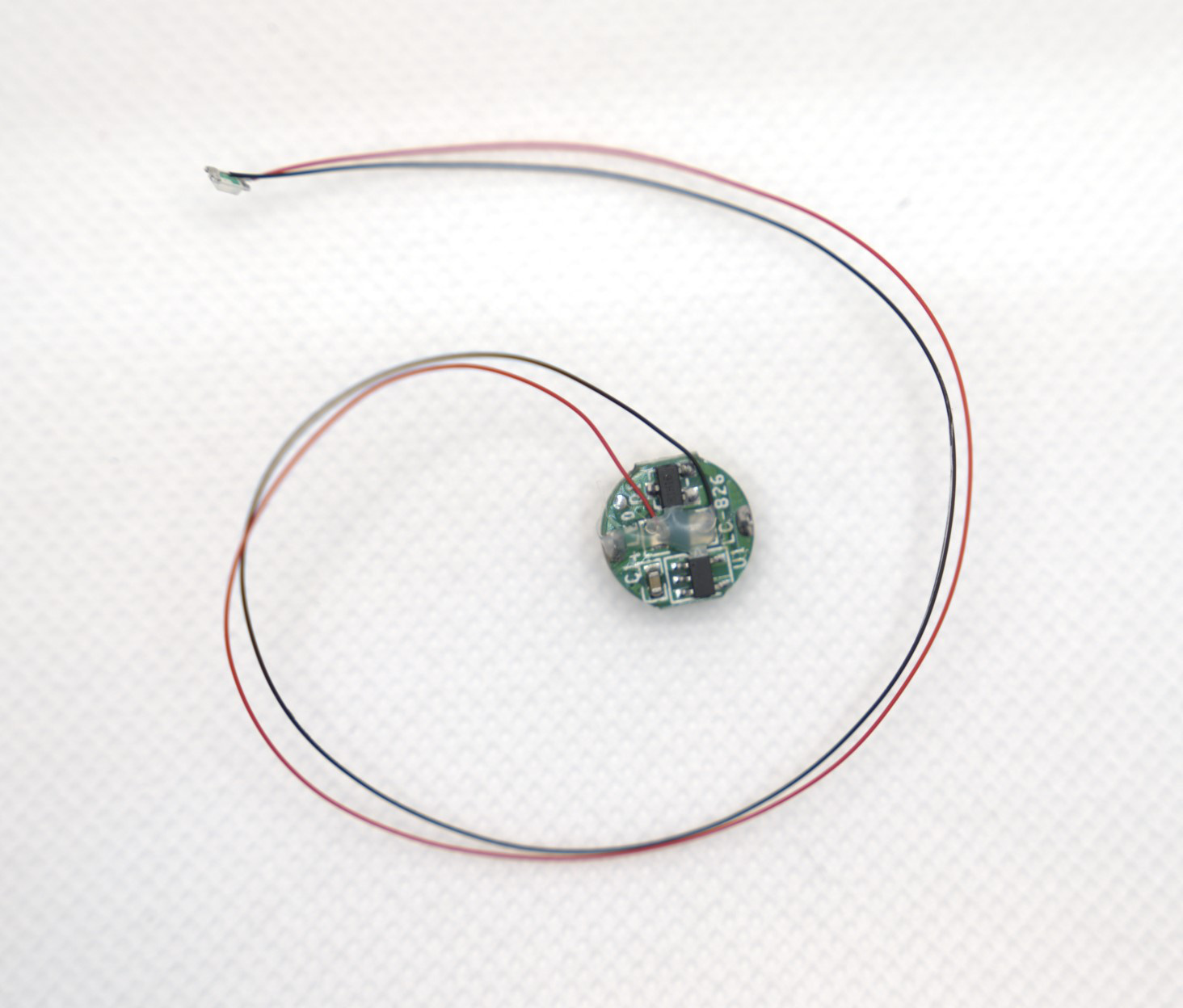

The "Lead Wire Version" features an ultra-fine lead wire measuring approximately 200mm in length and 0.3mm in diameter, with the LED mounted at its end. This version is suitable for advanced users who wish to illuminate small parts or recessed areas by drilling holes for installation.

Powered by a CR927 3V button cell battery (sold separately), ensuring a compact yet powerful illumination.

Please note: This product does not include the button cell battery or magnet for the switch. These items must be purchased separately.

Basic Specifications:

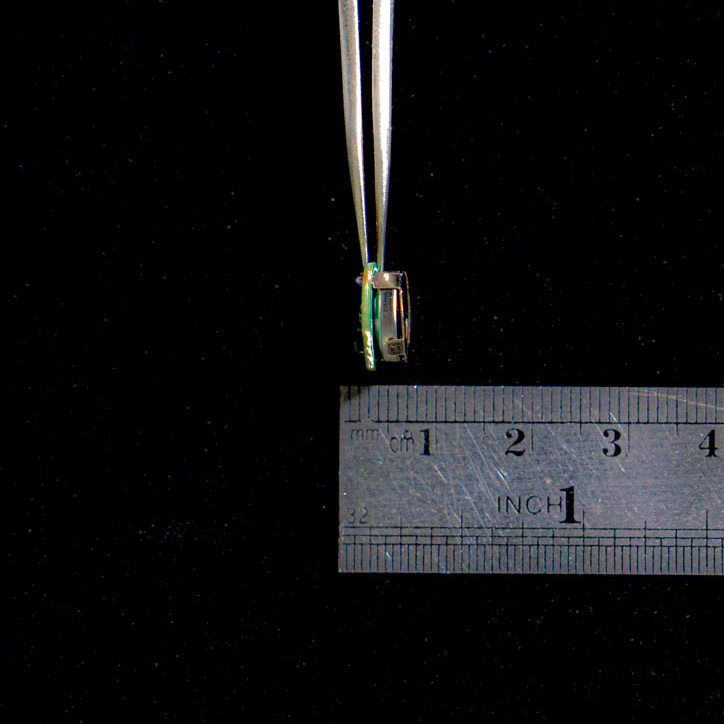

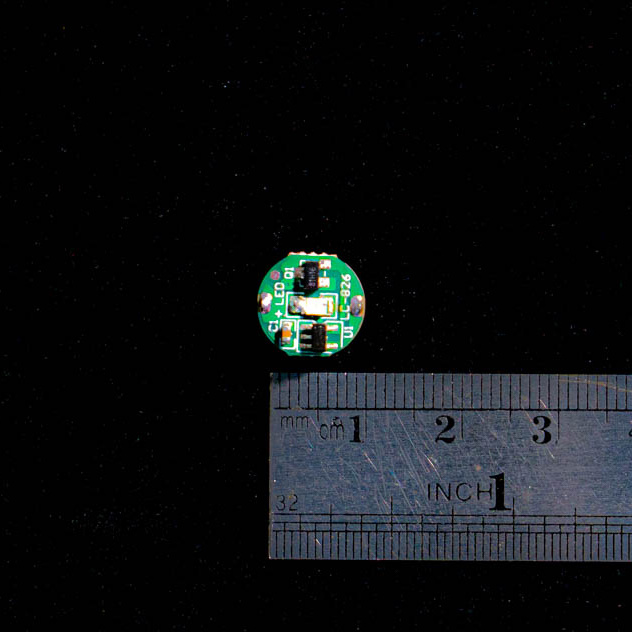

Size: 11 x 11 x 5mm (excluding protrusions)
Lead Wire: Diameter: 0.3mm, Length: Approximately 20cm
LED Lifespan: Approximately 30,000 hours
Power Source: CR927 3V button cell battery (sold separately)
Power Consumption: Approximately 10mA
Country of Manufacture: China
Warranty Period: 6 months

(*Batteries are sold separately.)
