    Fokker E.IV
  • Status Discontinued
  • Qty
  • Price $80.24 USD
  • Subtotal
Close Buy Now


1/32 Fokker E.IV

by Wingnut Wings

$80.24 USD $105.58 USD

This item is discontinued and is not expected to come back into stock.

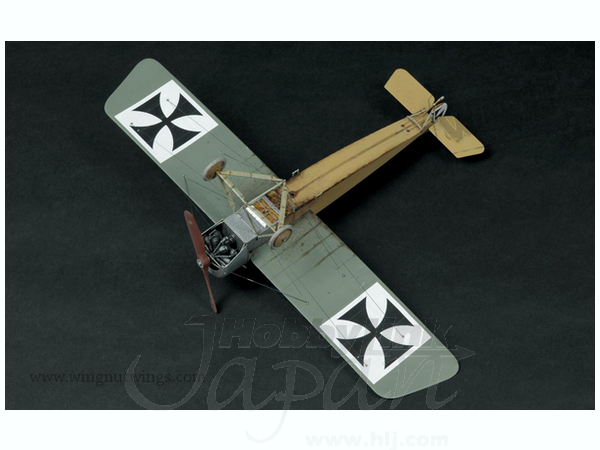

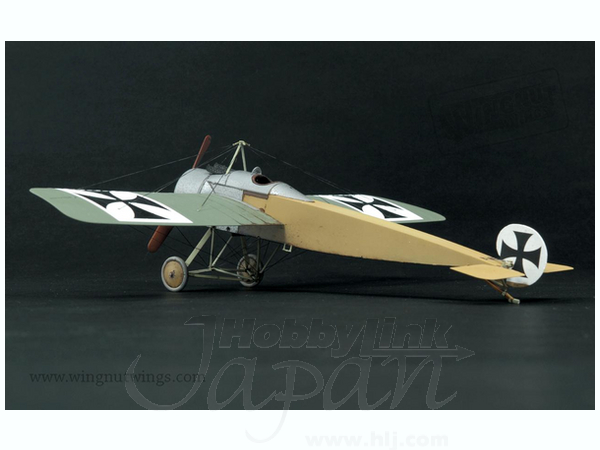

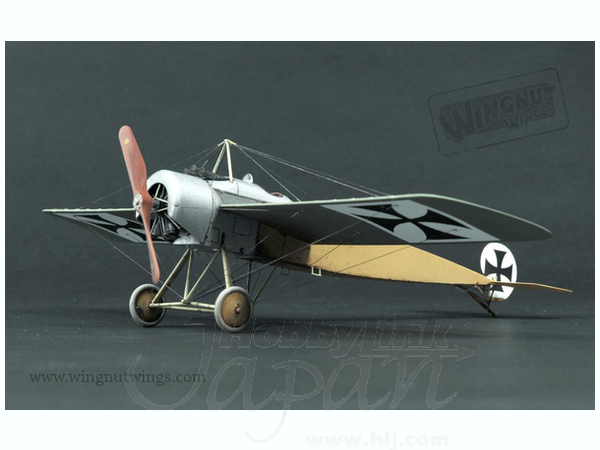

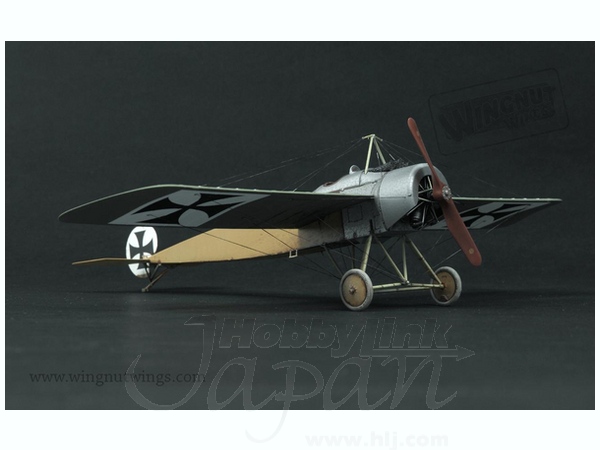

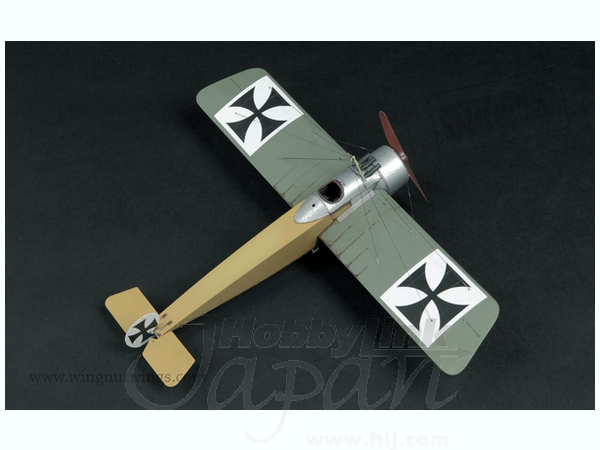

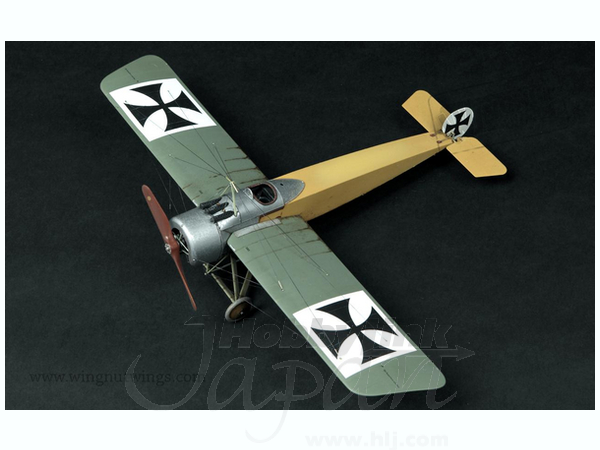

This is an injection-plastic aircraft model kit.

From the Wingnut Wings website:

Model features:
  • 168 high quality injection moulded parts. 84 all new parts including engine, fuselage and interior frame
  • 38 part highly detailed 14 cylinder 160hp Oberursel U.III engine
  • Optional 3 gun prototype and 2 gun production versions
  • 23 photo-etched metal detail parts
  • Optional propellers and coamings
  • Fine in scale rib tape details
  • Full rigging diagrams
The legendary Fokker Eindecker, armed with a machine gun synchronized to fire through the propeller, made its 1st kill on the 1st day of August 1915. It was a 80hp Oberursel U.0 (license built 80hp Gnome) powered wing warping Fokker E.1 flown by Max Immelmann and marked the beginning of the “Fokker scourge”. Inspired by the capture on 18 April 1915 of Roland Garros and his Morane-Saulnier Type L Parasol fitted with a forward firing machine gun (using armoured deflector plates to protect the propeller from ‘serious’ bullet damage) the Germans set about coming up with their own version. Legendarily, the 25 year old Anthony Fokker created his own interrupter gear in just 48 hours after being inspired by the capture of Garros, but this is undoubtedly a myth. A mechanical interrupter gear had been patented in 1913 by Hans Schneider of LVG but it was not until Fokker perfected it, or a similarly inspired design, that it worked sufficiently well to be employed in combat. Lawsuits filed by Schneider against Fokker continued up until September 1933.
Fokker’s E.1 (armed Eindecker 80hp) types started shipping to front line units in June 1915. The 100hp E.II, developed concurrently with the E.1, started entering service the following month with the E.III following in August. The 160hp Oberursel U.III powered Fokker E.IV, utilizing the wings and tailplane of the E.III, was initially fitted with 3 lMG 08 machine guns (which proved to be 1 gun to many) and first appeared in September 1915, although production aircraft did not arrive at the front in larger numbers until March-April 1916. In addition to the extra firepower of the 2nd gun, the ability to keep fighting when one gun jammed was a considerable benefit. The weight of the extra gun and ammunition combined with the extreme gyroscopic forces of the 160hp rotary engine meant that the wing warping Fokker E.IV was not the evolutionary success hoped for. By the time the E.IV was beginning to make its presence known over the front lines the appearance of the highly maneuverable French Nieuport 11 and British DH.2 had already marked the beginning of the end of the “Fokker scourge”. Most Eindeckers had been withdrawn from front line service by December 1916.
Any history here is of necessity very brief so we recommend that you seek out the references mentioned below for a better understanding of the various Fokker Eindeckers, but we do so with the following caution; considerable confusion exists about these important aircraft (in no small part because of incorrect or conflicting Idflieg and Fokker factory records). Because of this we highly recommend you treat published drawings & specifications with a great deal of skepticism. Josef Scott’s two Windsock Datafile Fokker Eindecker Compendiums published in 2012 go a long way towards clearing up much of this confusion.

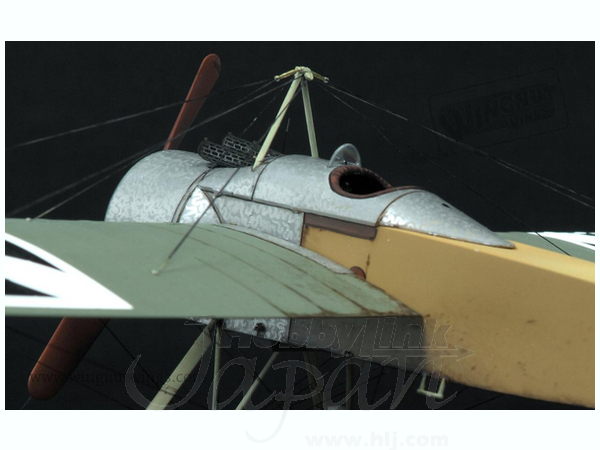

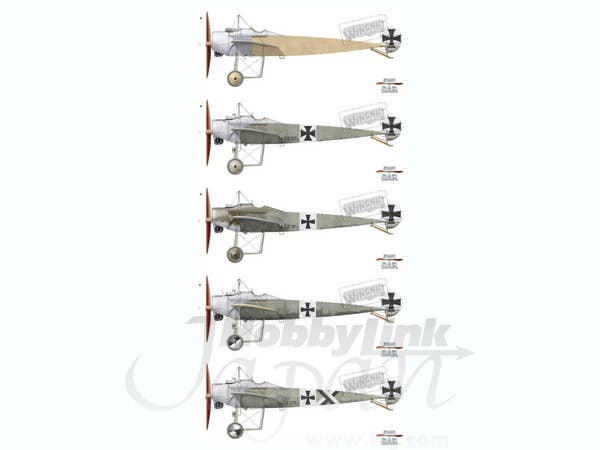

It appears that Fokker Eindecker steel tube framework and fittings were painted in grey-green while all aluminium panels and cowls remained unpainted and were given a ‘squiggly turned’ finish. Despite conventional wisdom, photographic evidence indicates that no Fokker Eindeckers were factory finished in Clear Doped Linen (CDL). Contemporary allied combat reports record Fokker Eindecker colours such as “dark brown”, “dark brown wings on the upper side”, “grey”, “straw yellow”, “white”, “black” and “butcher blue”. A French report mentions that “the fabric of the Fokker wings was generally beige in 1916” while capture reports of later production E.III 196/16 and E.III 210/16 simply mention “beige”. It is possible that “beige” and “straw yellow” are actually same colour and “white” and “black” may refer to misidentified Pfalz Eindeckers. It would appear that the linen covering was dyed, possibly before being fitted to the aircraft, or colour doped after being attached but before being finished with clear shrinking dope and varnish. Most Fokker Eindeckers exhibit heavy castor oil staining along their fuselages which soaked through the fabric from the inside, considerably darkening the coloured fabric.


Assembly Guide
