Description

This is a educational construction kit assembled from various materials (plastic, metal, etc.).

Fun Craft Series (Unit) No. 260
Universal Gearbox 2
UNIVERSAL GEARBOX 2

- Gearbox with two shafts intersecting at a right angle
This is a buildable gearbox that allows you to extract movement from both shafts arranged at right angles.
You can choose from three gear ratios for each, and the mounting bracket is detachable.
By changing the installation position, you can select from four different orientations of the output shafts.

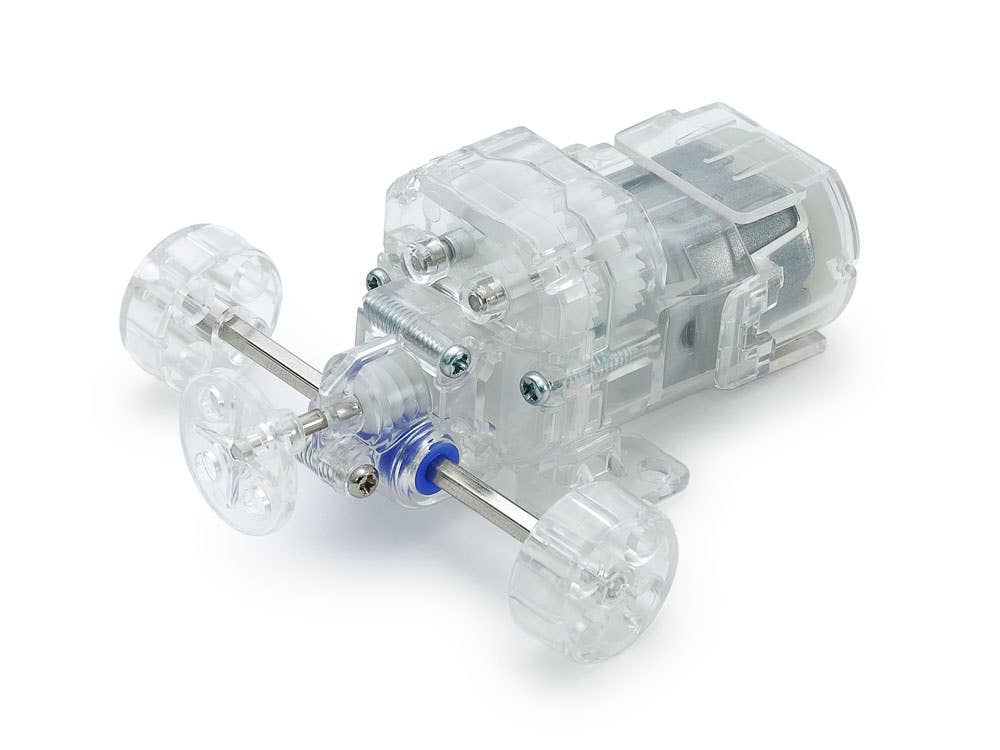

The main body features clear parts that make the internal mechanism easy to understand.
It also comes with a handy crank plate that allows you to vary the movement.

- Basic Specifications

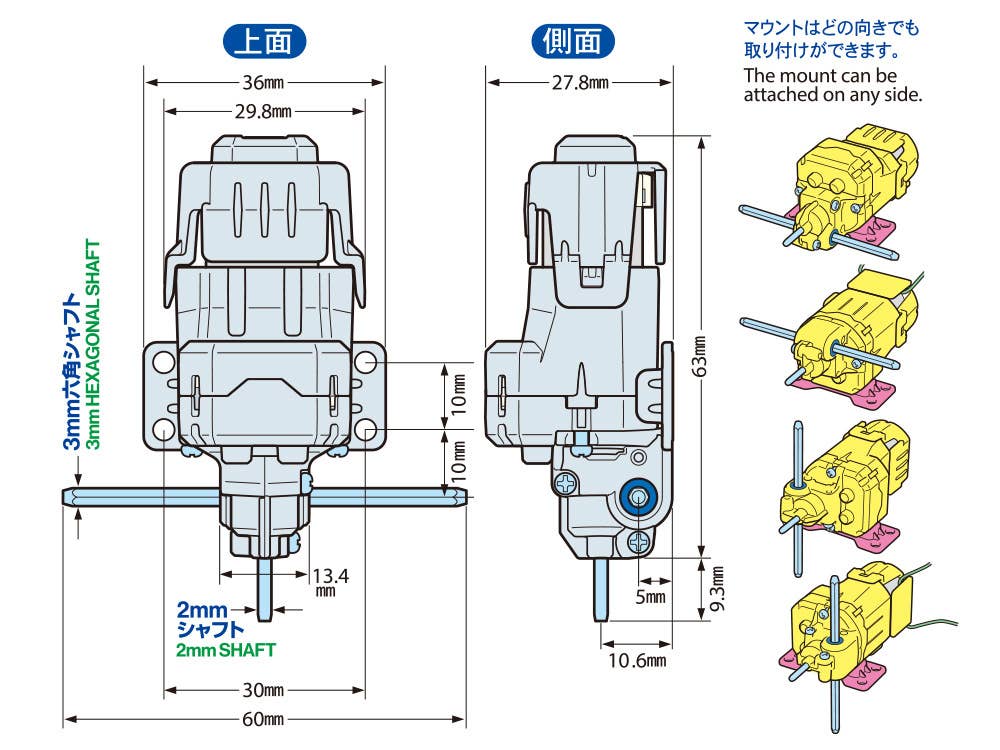

Overall length when completed: 63mm, overall width: 29.8mm, overall height: 27.8mm, width of output shaft section: 13.4mm.
Comes with a 130 type motor.

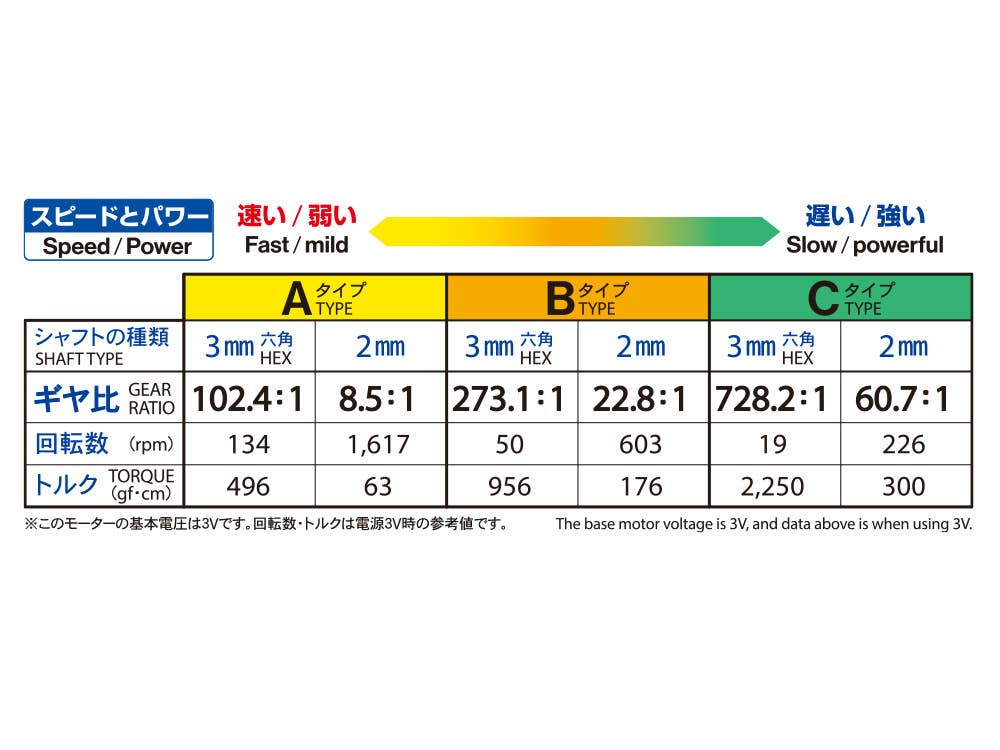

Gear ratios: 102.4:1, 273.1:1, 728.2:1 (for 3mm hex shaft), and 8.5:1, 22.8:1, 60.7:1 (for 2mm shaft).
Includes crank plates for both 3mm hex shafts and 2mm shafts, as well as screws and nuts for mounting.

- By changing the mounting position, you can select from four different orientations of the output shafts.

- Both 3mm hex shafts and 2mm shafts allow you to choose from three gear ratios.

Information is as of September 3, 2024. Product names, prices, release dates, specifications, etc., are subject to change without notice.
