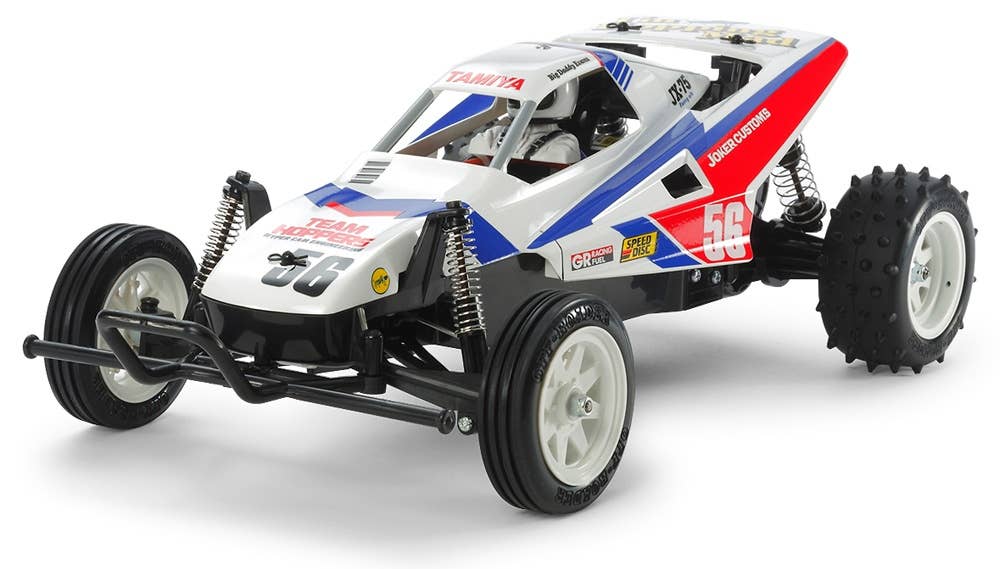

RC The Grasshopper II (2017)

by Tamiya
$70.61 USD $78.46 USD

Description

This is a injection plastic and metal radio or remote-controlled car model kit.


From the manufacturer:

The Grasshopper II is one of Tamiya's iconic radio control car kits from the late 1980's. It was an enhanced follow up release to the original Grasshopper kit. This re-release (2017) kit features a number of updates while keeping largely faithful to the original model. Its streamlined construction process makes this kit perfect for less experienced users and R/C veterans alike, while separately sold option parts can be used to enhance the model.

[Specifications]:

  • Scale: 1/10
  • Construction type: Assembly kit
  • Terrain use: Off-Road
  • Drive-train: 2WD
  • Drive type: Gearbox
  • Drive line: Solid axle
  • Differential type: Gear
  • Suspension: Independent front/solid axle rear
  • Steering mechanism: Direct servo
  • Shock damper: Friction damper
  • Shock damper material: Plastic
  • Tire type: Rubber
  • Tire tread: Grooved front/pin spike rear
  • Body material: ABS Plastic
  • Chassis material: Plastic
  • Electronic Speed Control (ESC): Included
  • ESC model: TBLE-02S
  • LED Light buckets: No
  • LED lights: No
  • Motor: 380-brushed type
  • Bearings: Plastic bushing
  • Adjustable camber: Fixed
  • Adjustable toe angles: Front only
  • Adjustable ground clearance: Fixed
  • Adjustable gear ratio: Fixed
  • Adjustable wheelbase: Fixed
  • Adjustable track width: Fixed
  • Adjustable shock angle: Fixed
  • Length: 400mm, width: 221mm, height: 139mm

[Special Features]:

  • The Grasshopper II body is molded in durable polystyrene resin, and has a driver figure for attachment.

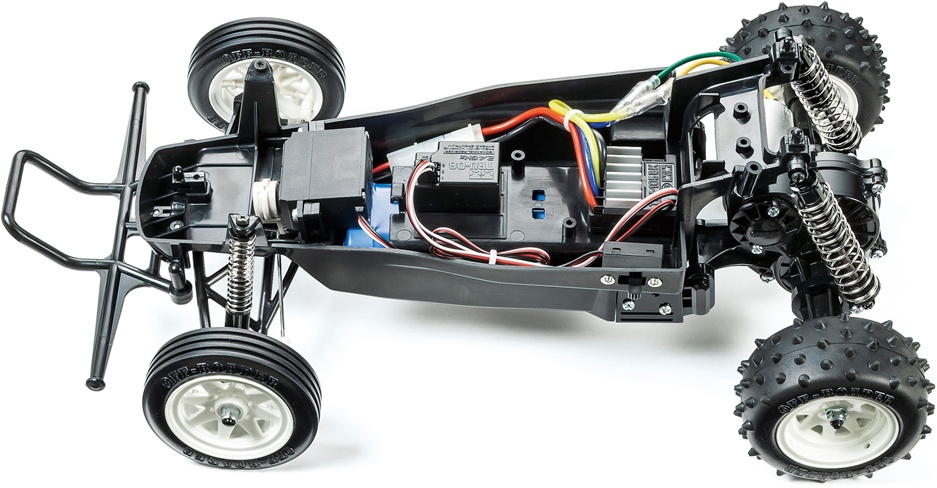

  • Features a rugged ABS resin bathtub chassis.

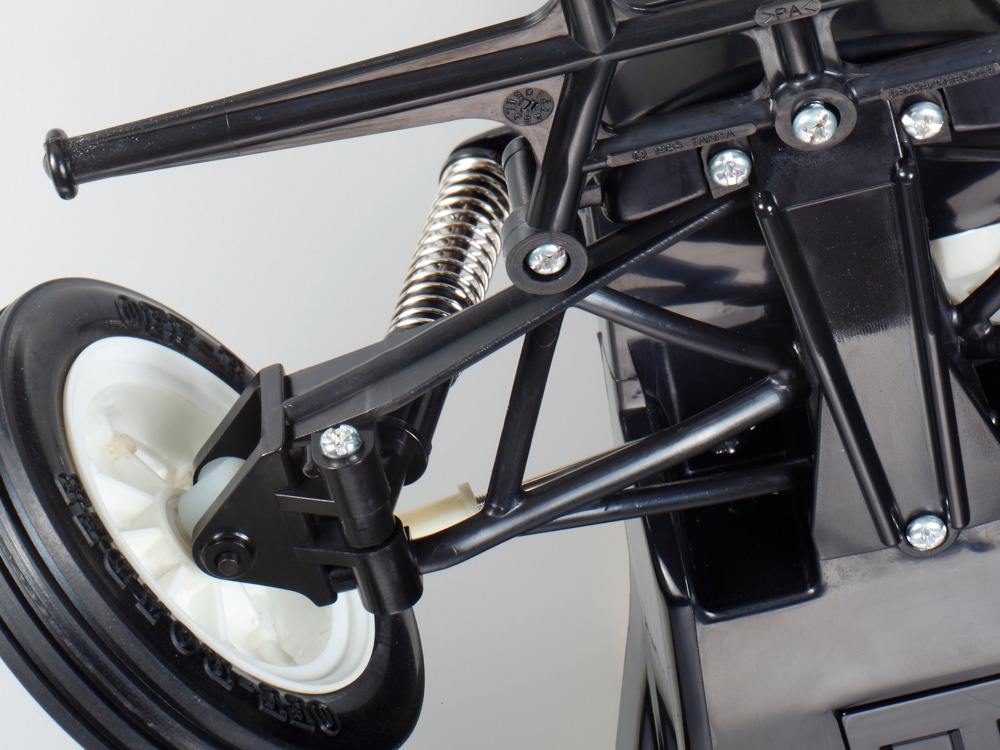

  • Front swing axle and rear rolling rigid suspension setups are actuated by coil-sprung friction dampers.

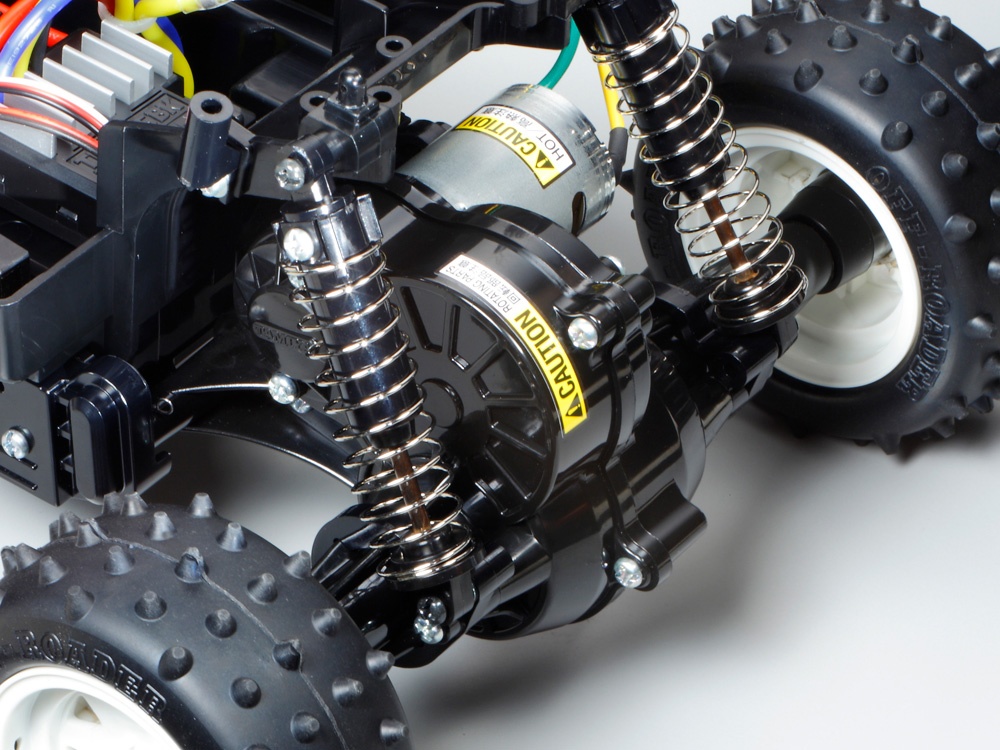

  • Fully enclosed rear gearbox contains a differential gear to aid smooth cornering.
  • Front ribbed tires give great straight-ahead grip, and rear spike tires provide powerful drive. They are matched with 8-spoke one-piece lightweight wheels.
  • Compatible with tune-up parts such as standard Type 540 motors (requires nine 1150 ball bearings & one 850 ball bearing) and CVA mini oil dampers.
  • Includes Tamiya TBLE-02 S ESC (May be used for brushed and brushless motor applications)

[Separately Required Items]:

  • 2-channel radio gear Transmitter
  • Receiver
  • Servo
  • ESC (Electronic Speed Controller)
  • 7.2V battery pack & charger
  • TS plastic model paint
  • 8 x AA batteries fir transmitter

Details

Code: TAM58643
Release Date: Jun 2017
Series: RC Series
Item Size/Weight: 48.4cm x 33.2cm x 11.4cm / 1440g
Manufacturer: Tamiya
