Description

This is an electrical part such as a motor, light, LED or switch.

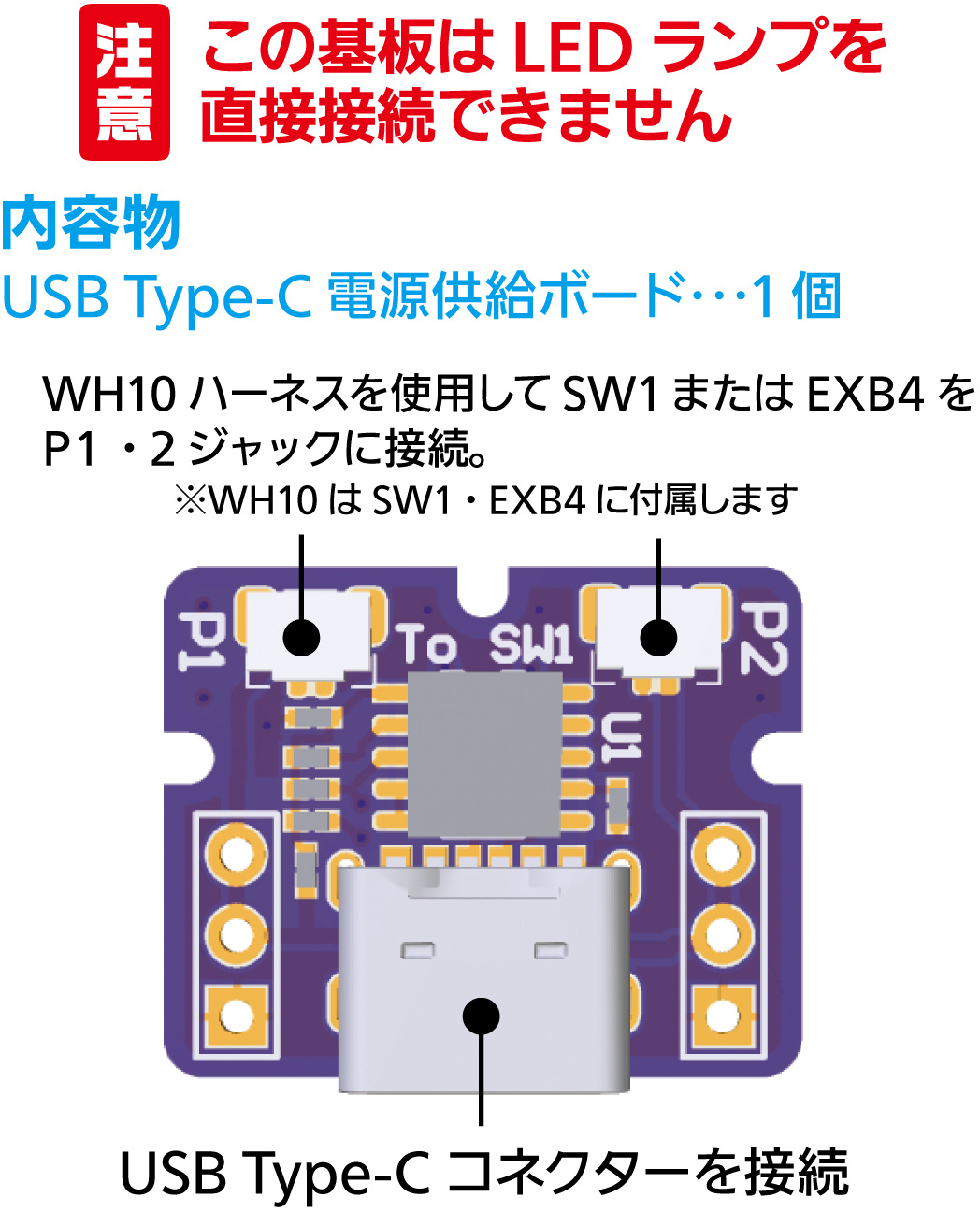

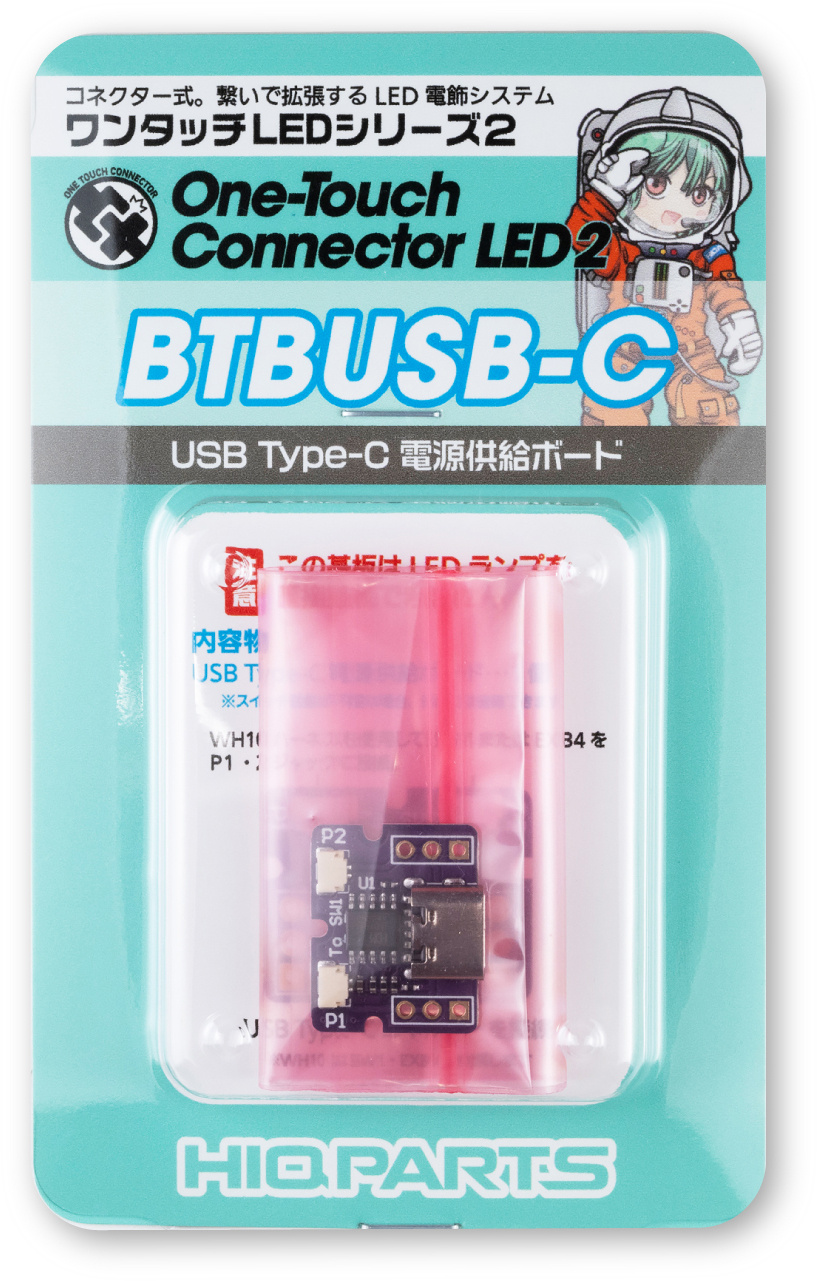

USB Type-C Connector Power Supply Board

This is a power supply board.
Please note that LED lamps cannot be directly connected to this board as they may burn out due to overcurrent.
By connecting a USB Type-C cable, you can supply power to the [EXB4 series] and [SW1] boards from a mobile battery, AC charger (PD compatible), or a PC's USB port.
If you want to light up a single LED, you will need three components at a minimum: [BTBUSB-C] (this product), [SW1] (sold separately), and [LED lamp] (sold separately).
You can light up to 10 LEDs by combining with additional components.
If you wish to light multiple LEDs, a branching board [EXB4 series] will be required additionally.

Caution: If the connection method is incorrect, the LED lamp may burn out. Please be sure to check the connection examples.
https://hiqparts.info/oled2

Size: Approximately W20.0mm x D16.7mm x H4.0mm
