Description

This is an electrical part such as a motor, light, LED or switch.

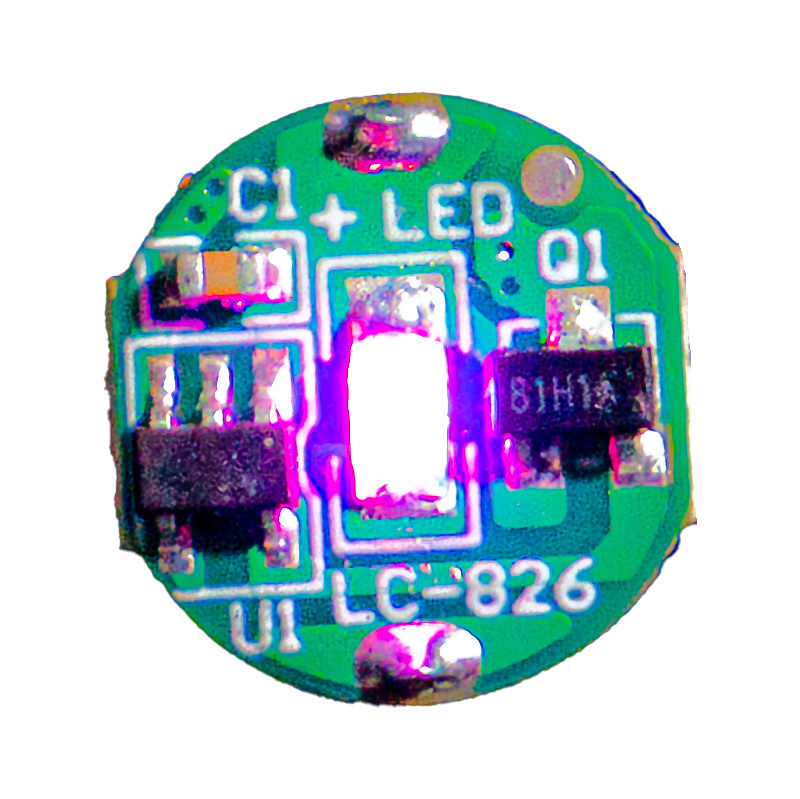

Introducing the LED Micro Module with a magnetic switch, designed for easy integration into model works with its ultra-compact size.

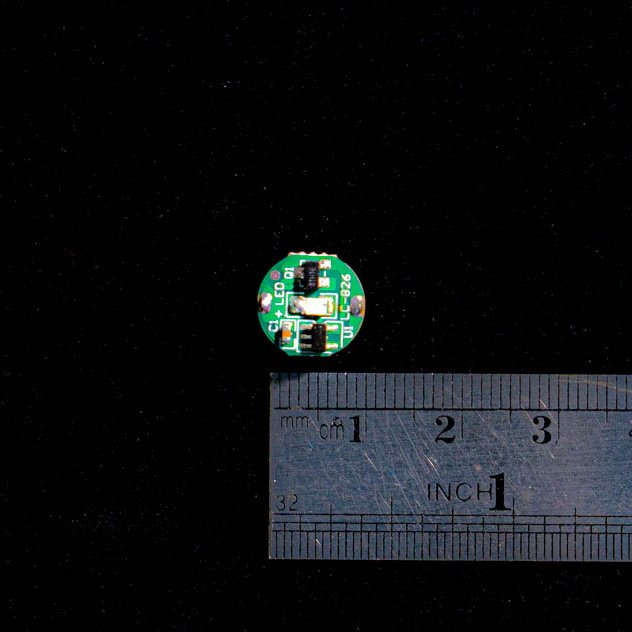

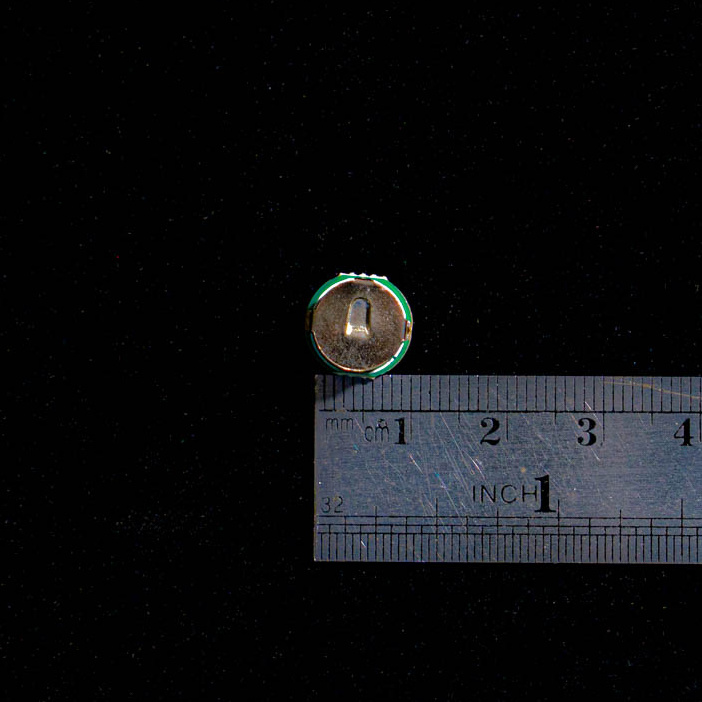

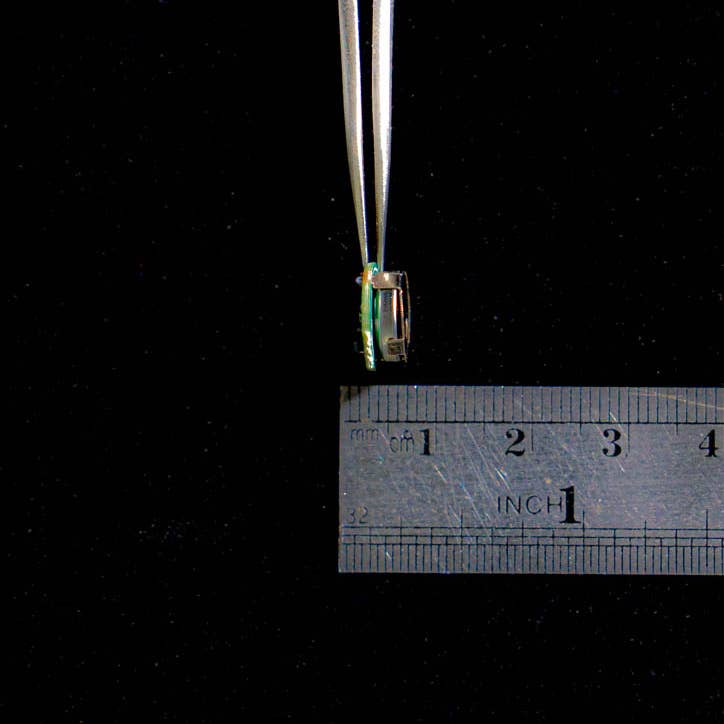

With a diameter of approximately 11mm and a height of approximately 5mm, this module combines an LED, switch, and battery case into a convenient unit.

Equipped with a magnetic switch, you can toggle the LED on and off by bringing a magnet close to it. This allows you to illuminate the LED module installed inside cases, housings, or models from the outside without direct contact.

The standard version allows for easy installation wherever illumination is desired, while the lead wire version offers advanced customization possibilities, such as embedding the module in tight spaces or attaching LEDs to narrow areas or protrusions.

Available in a range of nine colors to suit various models, both individually and in sets of three. (*Lead wire version available in six colors)

Product Applications:

• Integration into internal spaces of constructions or model works as lighting gimmicks.
• Placement in confined spaces for light collection using optical fibers.
• Installation of various colors in individual devices to differentiate between units based on color.

Powered by a CR927 3V button cell battery (sold separately), ensuring a compact yet powerful illumination.

Please note: This product does not include the button cell battery or magnet for the switch. These items must be purchased separately.

Basic Specifications:
Size: 11 x 11 x 5mm (excluding protrusions)
LED Lifespan: Approximately 30,000 hours
Power Source: CR927 3V button cell battery (sold separately)
Power Consumption: Approximately 10mA
Country of Manufacture: China
Warranty Period: 6 months

(*Batteries are sold separately.)
