Description

This is a set of optional parts for R/C or Mini 4WD car models.

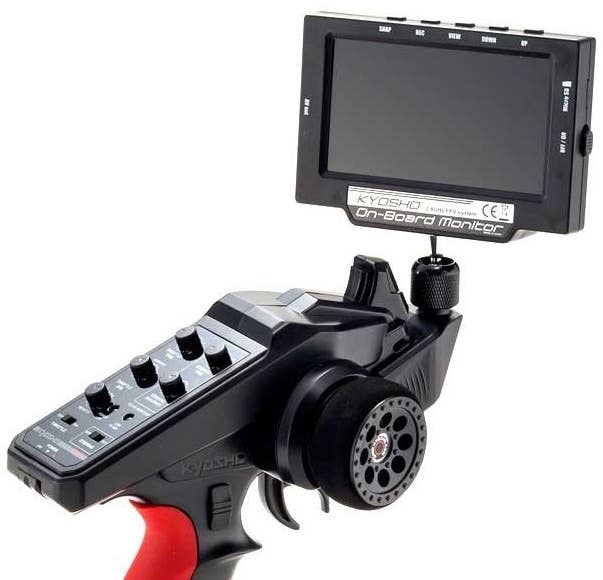

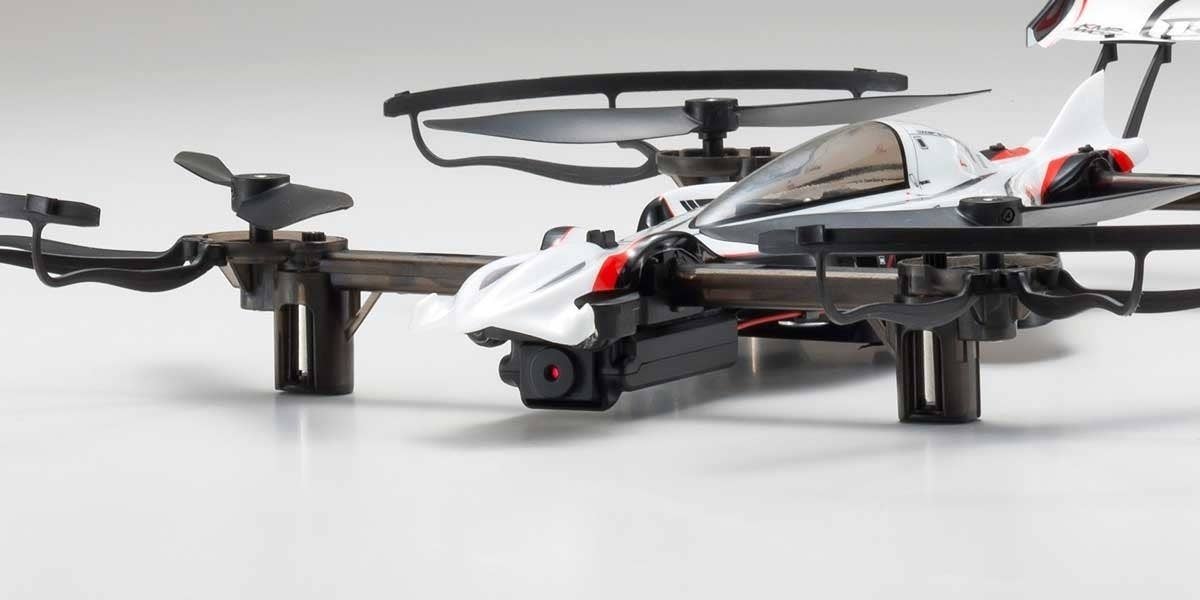

Experience FPV (first person view) control as you fly or drive your existing R/C airplane or car with the KYOSHO ONBOARD MONITOR. This wireless camera and monitor set brings the FPV system made popular on racing drones to hobby model users. The KYOSHO ONBOARD MONITOR operates on 2.4GHz frequency utilizing FHSS that also minimizes image transmission delay, unlike most systems that operate on 5.8GHz, which can require an amateur radio license. The wireless camera incorporates a transmission unit that allows it to be installed on the fuselage (or chassis) and communicate independently with the monitor mounted on the transmitter so you can start enjoying your model’s action from first person view. The wireless camera bolts straight on to the Drone Racer and can also be installed on the MINI-Z Racer with the included conversion connector and on other R/C models with a standard receiver. Experience a totally new vision of land, sea and air model enjoyment with the KYOSHO ONBOARD MONITOR.

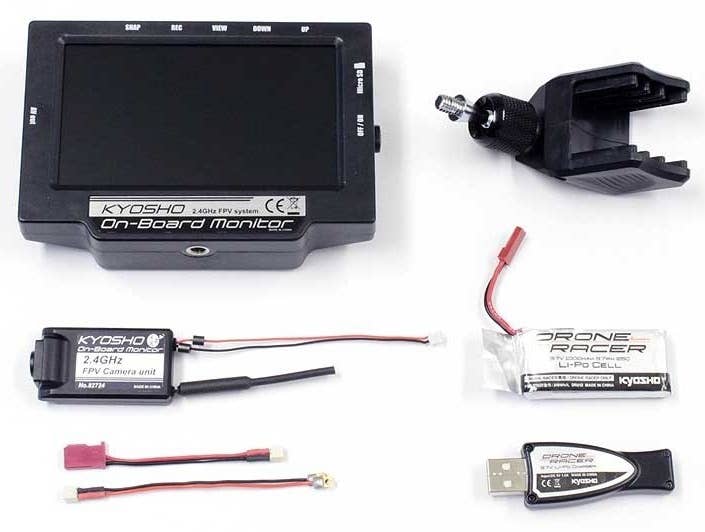

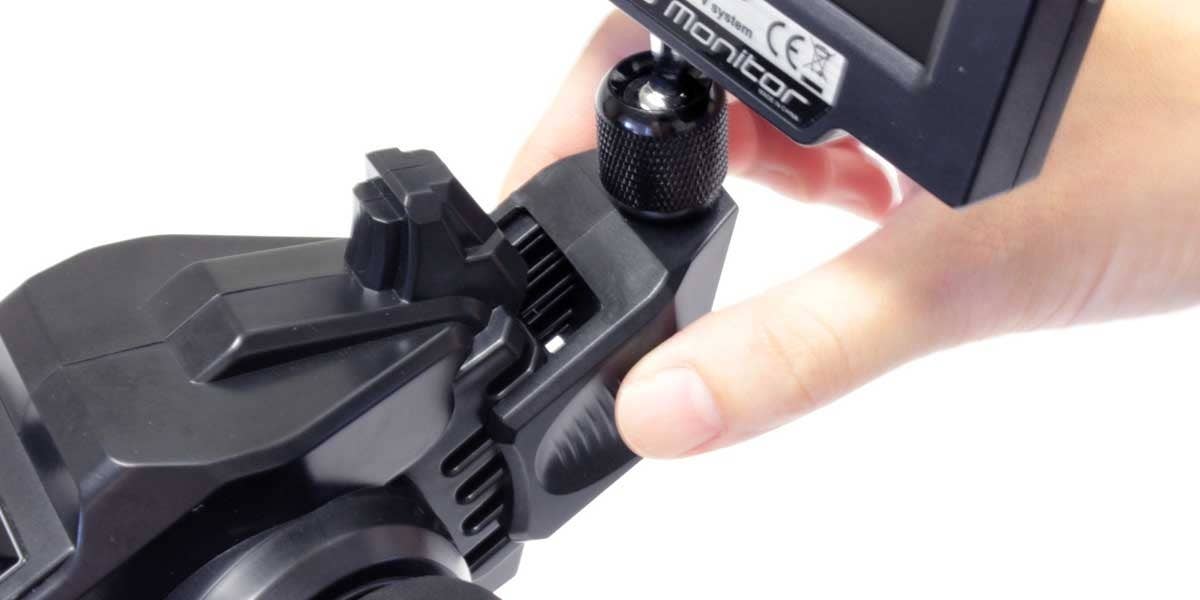

[Set Contents]:Set contents: wireless camera; monitor; attachment for KT-231P+&KT-531P; EVA cushion tape. LiPo battery for monitor; USB charger; conversion connector for receiver conversion connector for MINI-Z. Only micro SD card is required to be purchased separately.

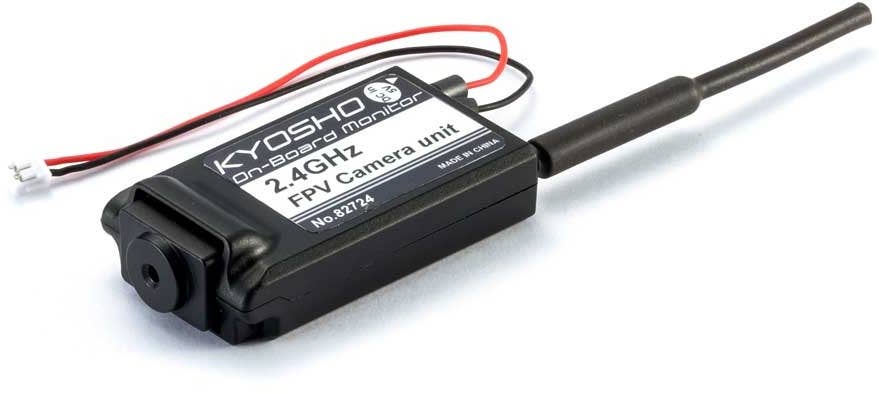

[Technical Data - Camera]:

• External dimensions L4.8 x W2.55 x H1.33cm
• Weight 12g approx.
• Resolution 480 x 272 pix
• Frame rate 30fps
• Angle of view 60°
• Frequency 2.4GHz
• Power DC3.6?6.6V
• Current 270mA
• Transmission range 60m (can vary depending on conditions)

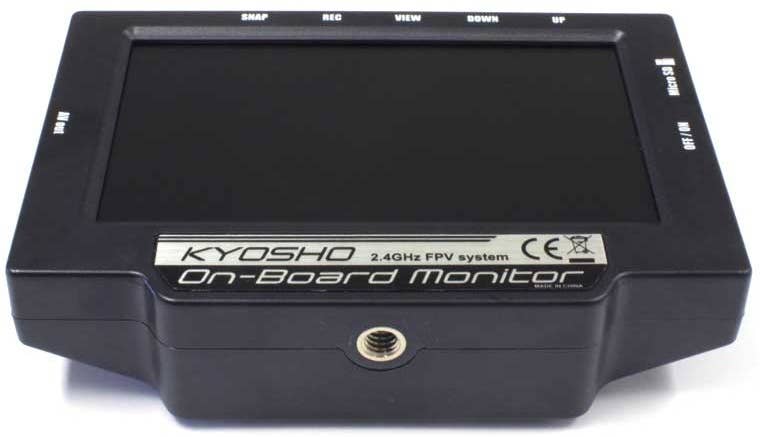

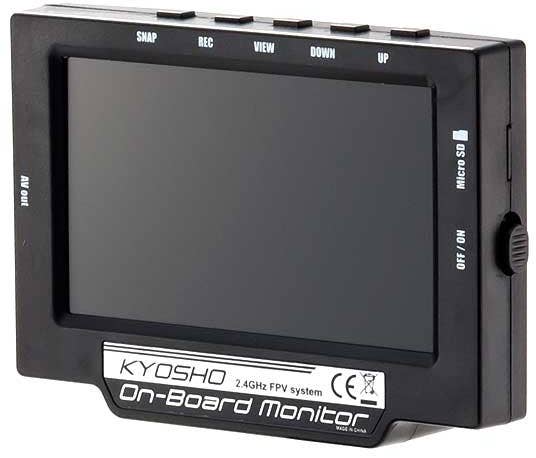

[Technical Data - Monitor]:

• External dimensions L12.5 x W8.57 x H2.8cm
• Screen Size 4.3 inch TFT (480 x 272)
• Weight 150g (incl. battery)

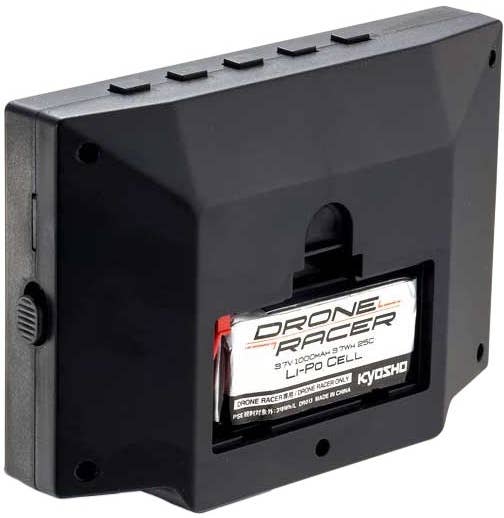

• Battery 3.7V-1000mAh LiPo (sold separately)
• Video file format AVI
• Video output NTSC
• Media Micro SD card (sold separately
• Power consumption 260mA
