Name: HG Step Drill Single Item (2.5-10.5)
Brand: Wave
SKU: WAVHT-532
Price: 2356 JPY
Availability: InStock

In Stock 3-7 days

HG Step Drill Single Item (2.5-10.5)

by Wave

$18.14 USD ~~$19.09 USD~~

This item is limited to 1 per person.

In Stock: Orders usually filled within 3-7 days.

Add to Wishlist

Description

This is a tool for use in model assembly.

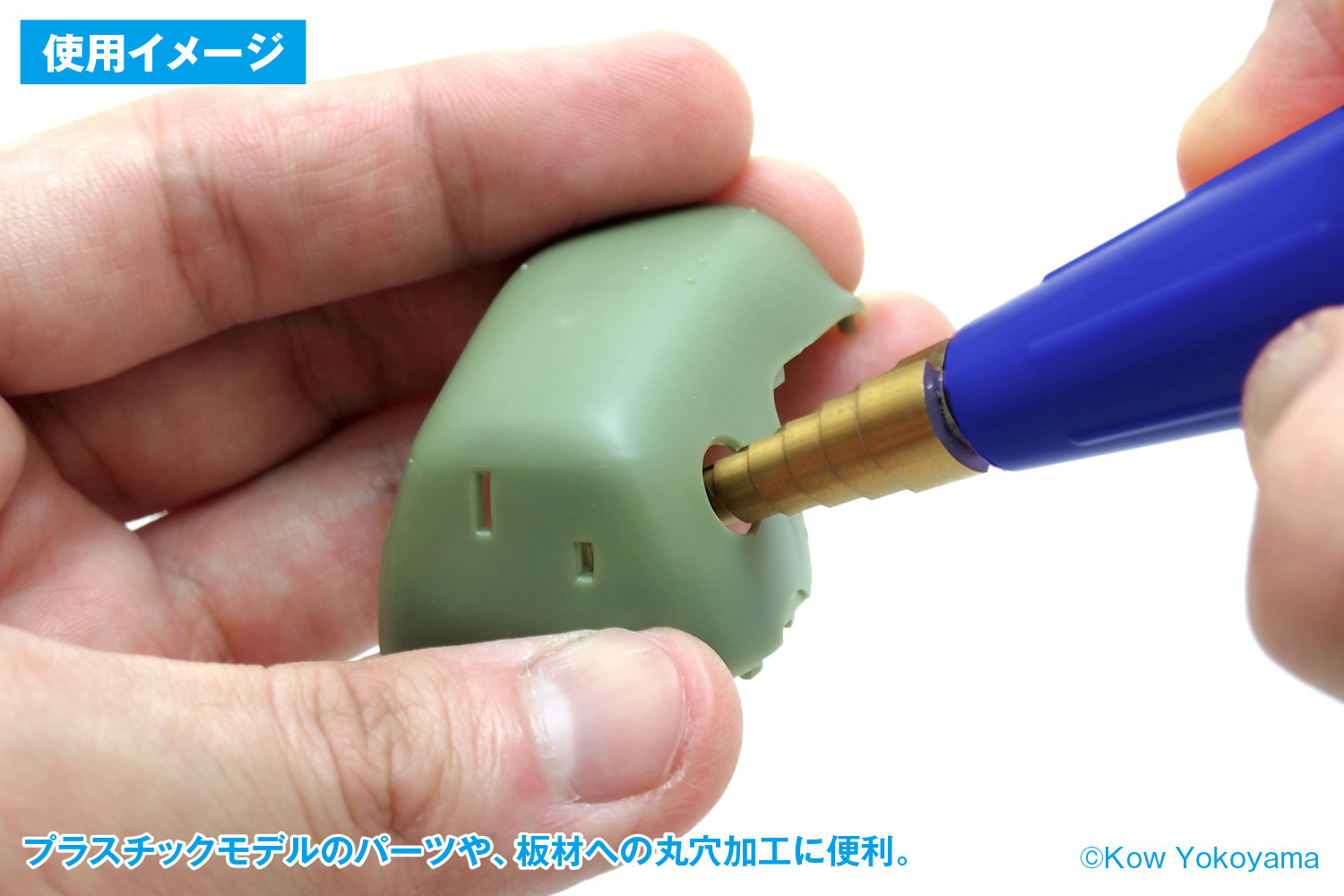

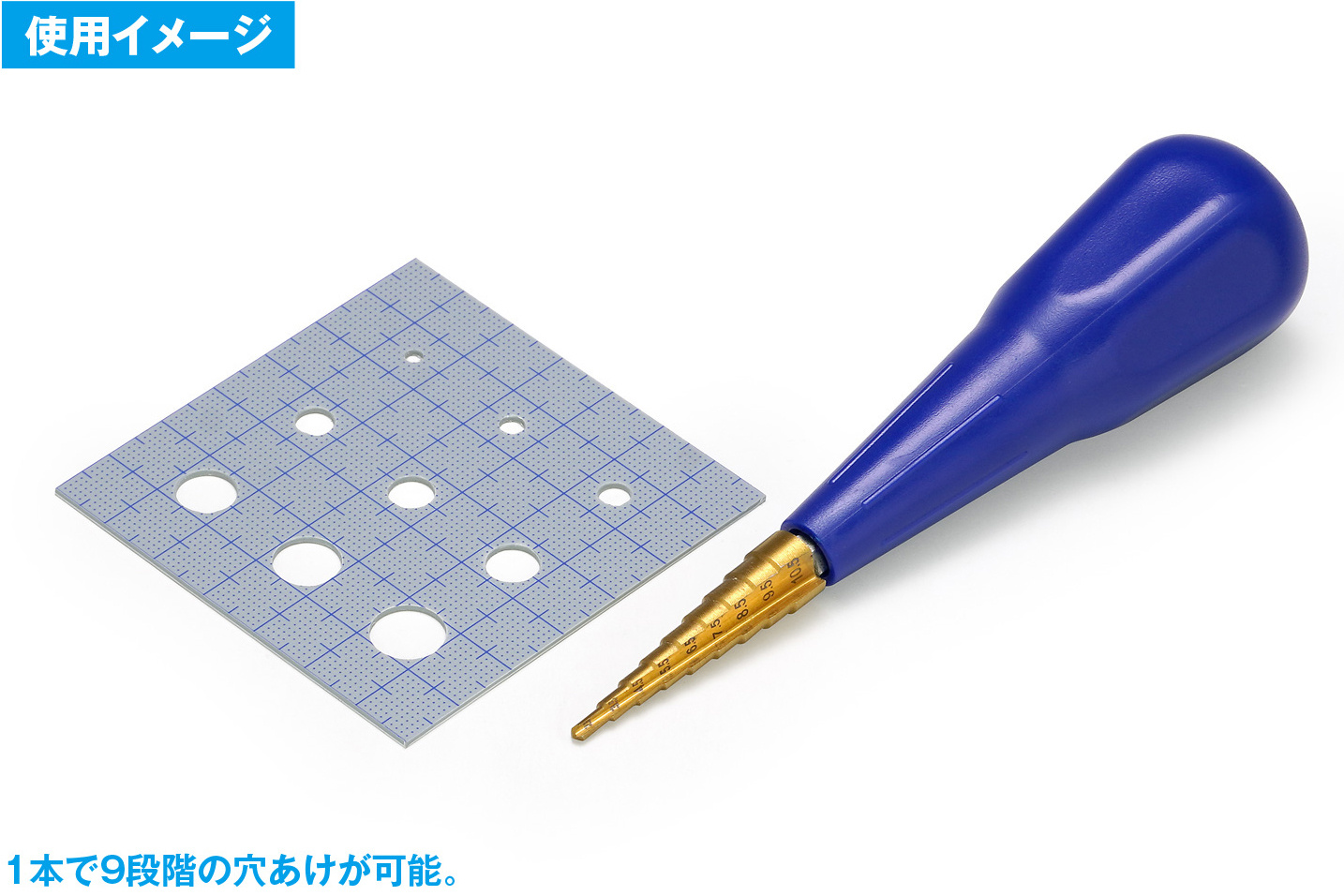

9 levels of drilling are possible with a single tool. For drilling round holes in plastic model parts and boards.

This step-type drill blade (single item) is convenient for drilling round holes in plastic model parts and plate materials.

This product is a variation of our conventional "HG Step Drill," and the diameter of each drill blade has been increased by 0.5mm, enabling 9-step drilling from 2.5 to 10.5mm.

Step Drill Specifications

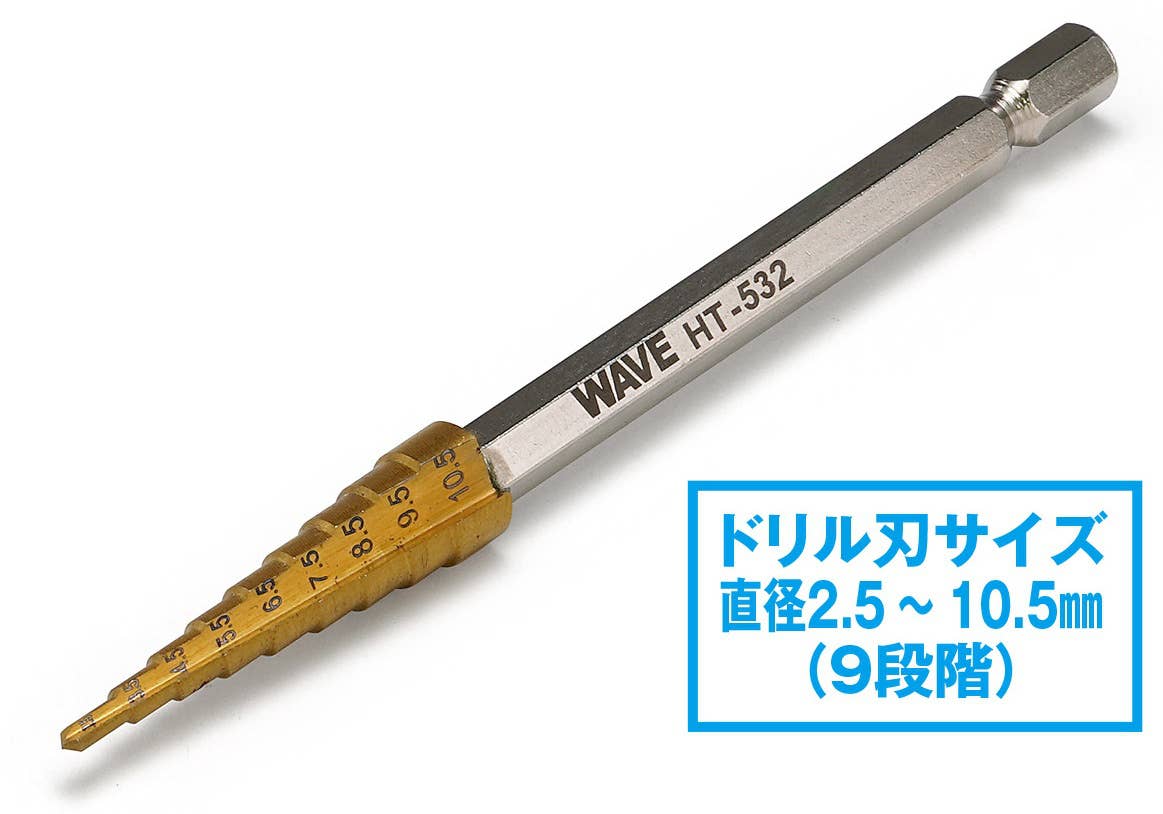

Drilling diameter: 9 steps (2.5 / 3.5 / 4.5 / 5.5 / 6.5 / 7.5 / 8.5 / 9.5 / 10.5 mm)

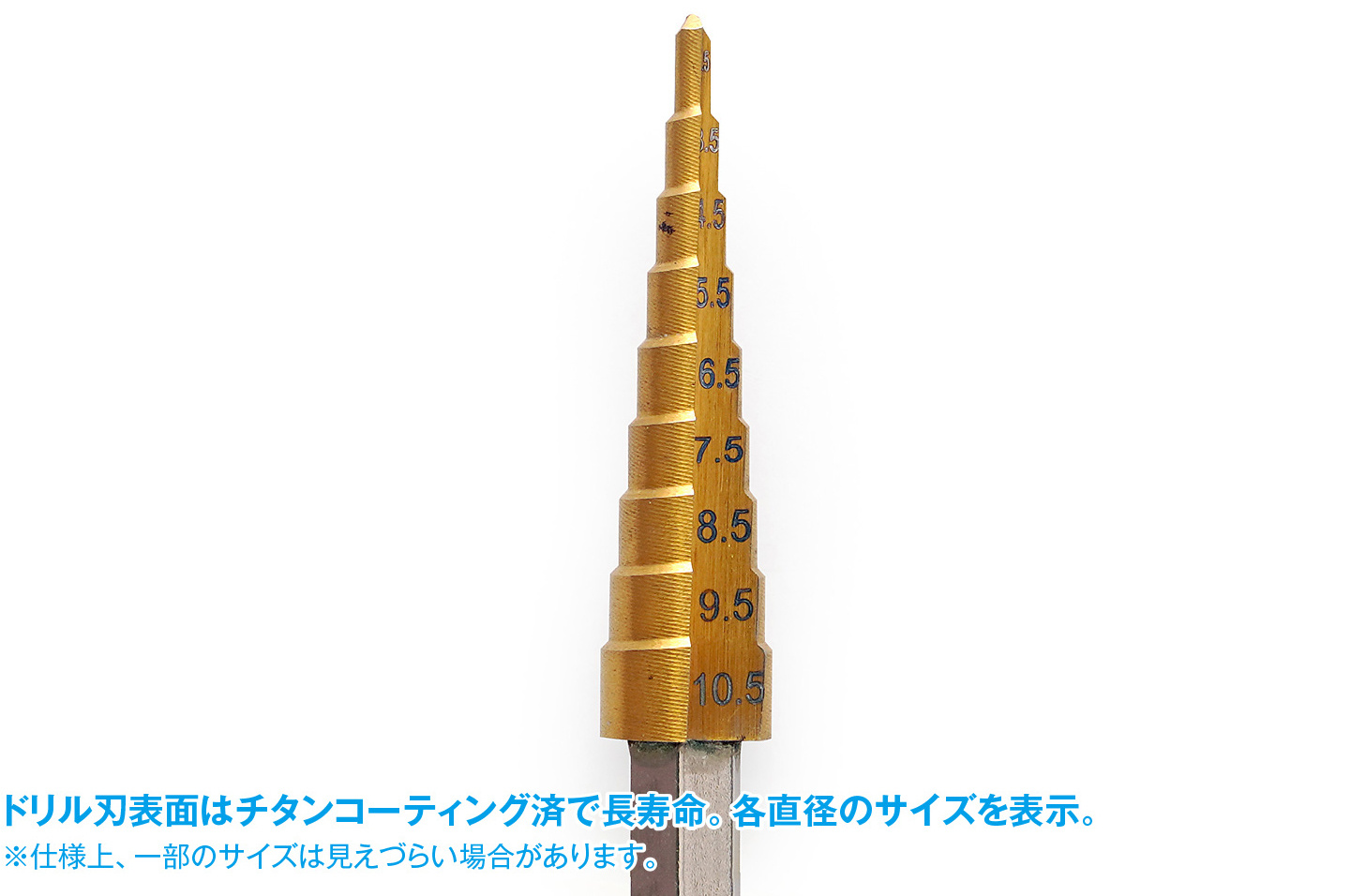

Each diameter size is indicated on the drill surface

Titanium coated

Due to the specifications of the product, some size indications may be difficult to see.

Target materials: Plastic, thin sheets of light metals such as aluminum and brass, etc.

Drillable wall thickness (plastic): Up to 2 mm

(Caution)

Not suitable for processing carbon-based materials. Due to the structure of the product, it is not suitable for drilling deep round holes in thick materials or blocky materials.

[Caution] This product is a cutting tool, so please handle with care.

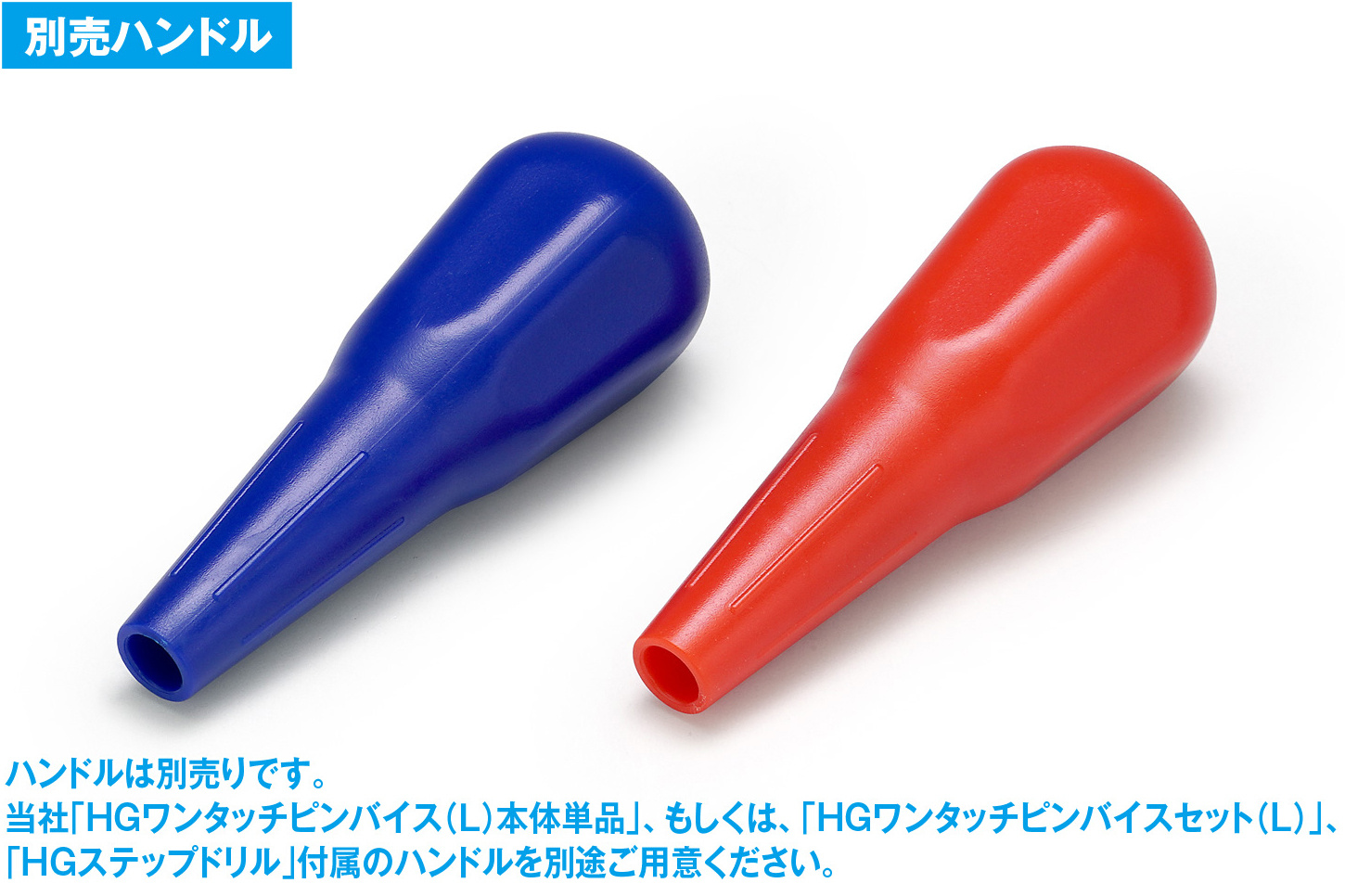

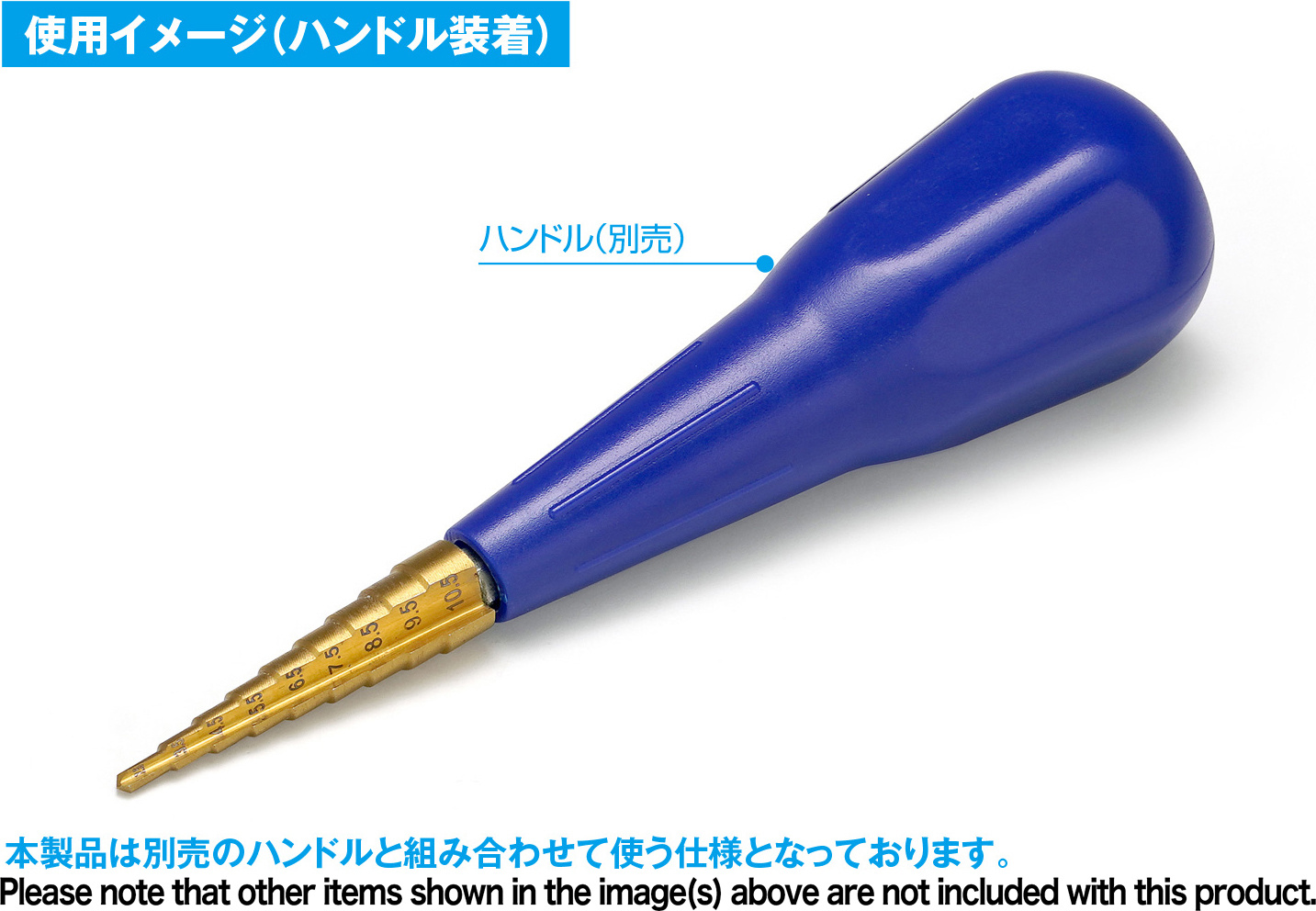

The handle is sold separately. Please prepare our "HG One-Touch Pin Vice (L) main body only" or "HG One-Touch Pin Vice Set (L)" or "HG Step Drill" attached handle separately.

HG Step Drill single item [2.5-10.5

Product material: HSS (drill blade)

Main unit size (overall length x diameter): approx. 115 x 10.5 (mm)

Product code: HT-532

Details

Code: WAVHT-532
JAN Code: 4943209385324
Release Date: 2023/02/03
Category: Hobby Supplies
Country of Origin: Taiwan
Cancellation Deadline: 2023-01-30
Cancellations will not be accepted after this date (Japan Standard Time).
Series: Wave Parts Tool Series
Item Type: Tools
Manufacturer: Wave
Item Size/Weight: 17 x 5.7 x 1 cm / 40g
